Blum AVENTOS HF Top Redefines Design Freedom for Modern Wall Cabinets

Wall cabinets are an essential part of modern homes, providing everyday storage across kitchens and other living spaces. While standard hinges have traditionally handled basic opening and closing functions, contemporary interiors increasingly demand cabinetry that combines functionality, accessibility and greater design freedom.

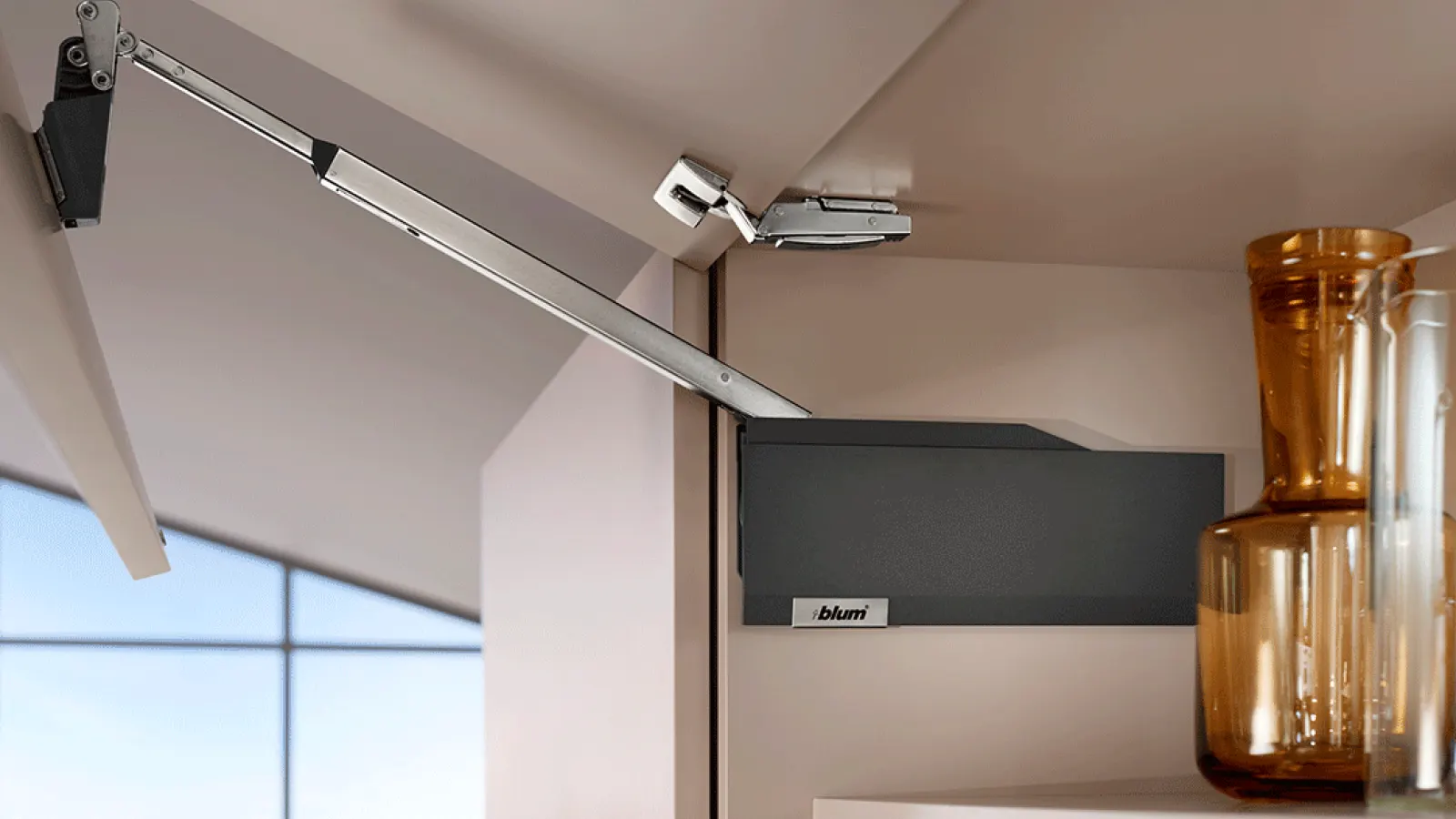

Blum’s AVENTOS HF top is a lift system engineered specifically for high and mid bi-fold wall cabinets, offering a modern alternative to conventional hinged cabinet fronts.

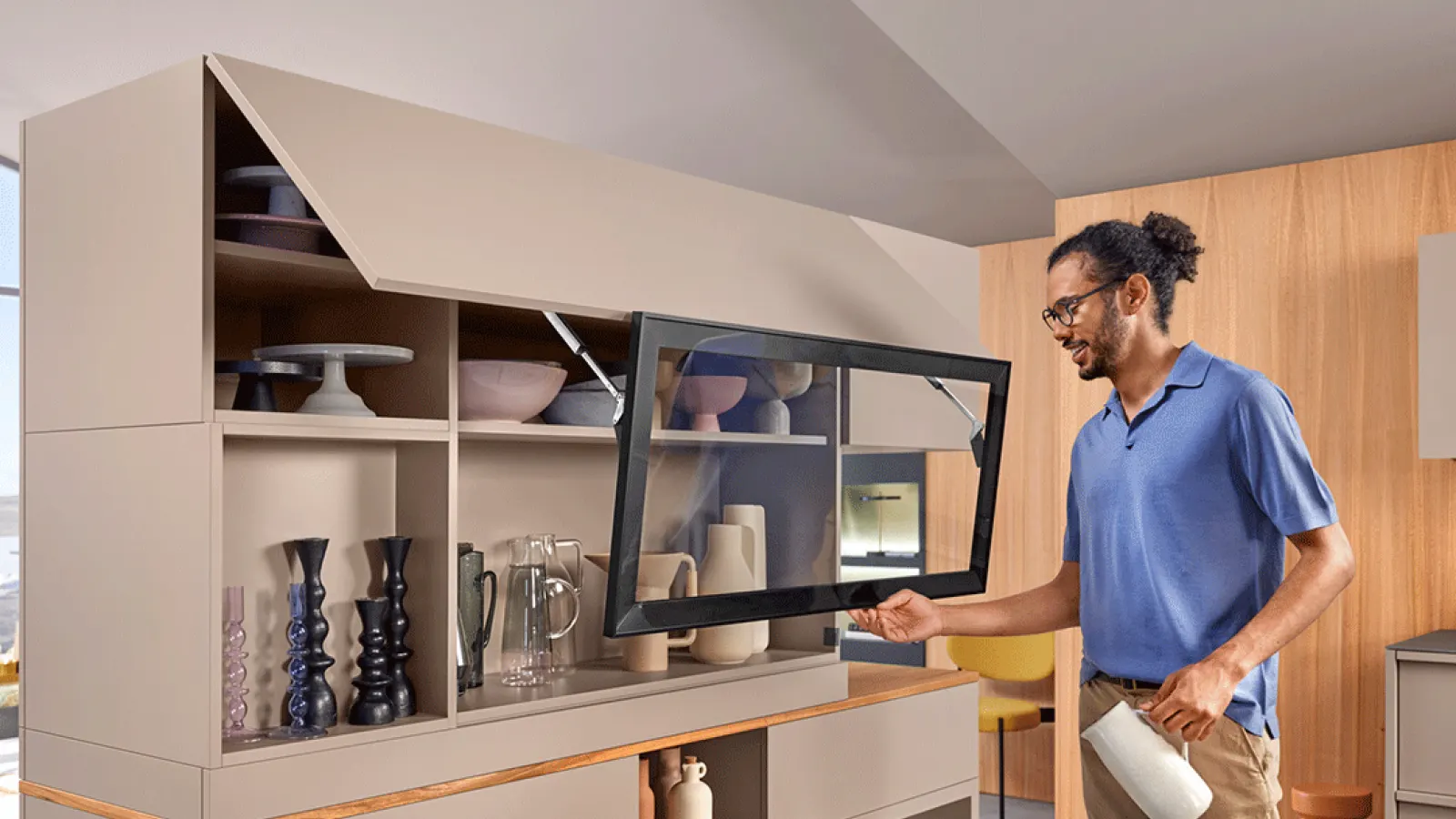

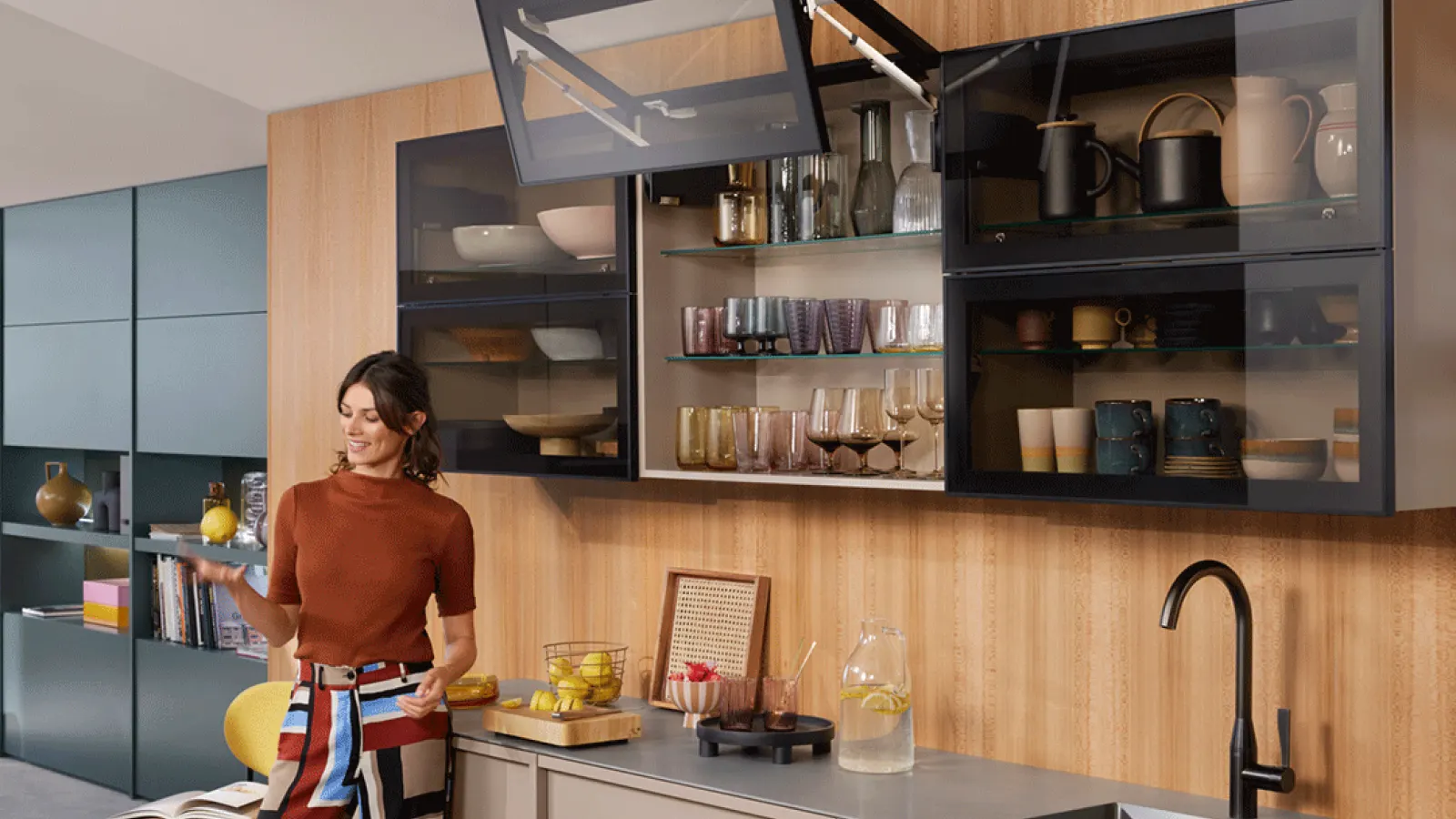

Suitable for kitchens, bedrooms and other living zones, the system allows the two-part cabinet front to fold and glide upward, keeping it out of the user’s working and movement area.

Smooth and Effortless Cabinet Movement

AVENTOS HF top is designed to make frequently used wall cabinets easier and more comfortable to operate.

The cabinet front can remain open at the position where the user leaves it, providing convenient access to stored items.

The system features integrated BLUMOTION, enabling soft and quiet closing for enhanced everyday usability.

For handleless cabinetry, AVENTOS HF top can also be paired with SERVO-DRIVE, allowing users to open the cabinet front with a simple touch.

Flexible Cabinet Dimensions

AVENTOS HF top supports a broad range of cabinet configurations, giving architects, designers and furniture manufacturers greater flexibility while planning wall storage.

The system is suitable for:

• Cabinet Heights: 480–1,200 mm
• Cabinet Widths: Up to 1,800 mm
• Required Internal Depth: 264 mm
• Applications: High and mid bi-fold wall cabinets
• Additional Application: Worktop-mounted installations

This flexibility enables the system to be incorporated across different cabinetry dimensions and interior environments.

Built-In Opening Angle Stop

Low ceilings and restricted overhead spaces can create challenges for conventional lift-up cabinet systems.

AVENTOS HF top addresses this through a built-in opening angle stop, which prevents the bi-fold front from opening beyond the required height.

This helps prevent the cabinet front from coming into contact with ceilings or surrounding surfaces, reducing the possibility of damage to both cabinet finishes and interior surfaces over time.

Greater Freedom in Cabinet Front Design

AVENTOS HF top supports a wide variety of cabinet front materials and configurations.

Designers can specify traditional wooden fronts, aluminium-framed profiles or combinations of different materials across the two-part front.

The system also accommodates asymmetric front configurations, creating additional opportunities for distinctive cabinet designs and visual accents.

AVENTOS HF top cover caps are available in silk white, light grey and dark grey, allowing the hardware to coordinate with different cabinet finishes and interior palettes.

Designed for Easy Installation and Adjustment

Blum has engineered the AVENTOS HF top system to simplify installation and adjustment, helping furniture manufacturers and installers achieve efficient setup across different applications.

Its combination of flexible planning, streamlined installation and adjustable components makes it suitable for contemporary cabinetry across multiple areas of the home.

Tested for Long-Term Performance

Durability is an important consideration for cabinet hardware that may be operated several times every day.

Blum tests its lift systems for more than 80,000 opening and closing cycles to help ensure reliable long-term performance.

The hardware also undergoes physical testing for static loads, lateral stability and sudden slamming, supporting its suitability for demanding everyday residential use.

Key Features

• Product: Blum AVENTOS HF top
• Type: Bi-fold lift system
• Applications: Kitchens, bedrooms and other living areas
• Cabinet Height: 480–1,200 mm
• Cabinet Width: Up to 1,800 mm
• Internal Depth Required: 264 mm
• Soft Close: Integrated BLUMOTION
• Touch Opening: Compatible with SERVO-DRIVE
• Opening Control: Built-in opening angle stop
• Front Options: Wood, aluminium frames and mixed materials
• Design Options: Supports asymmetric fronts
• Cover Cap Colours: Silk white, light grey and dark grey
• Durability: Tested for more than 80,000 opening and closing cycles
• Additional Use: Worktop-mounted applications

About Blum

Founded in 1952 by Julius Blum in Höchst, Austria, Blum is a global manufacturer of furniture fittings and develops lift, hinge, drawer and pocket systems, along with motion technologies for furniture.

The company also provides assembly devices and related services for furniture manufacturers, distributors, furniture fitters and end users.

Blum operates 11 production plants across Austria, Poland, the United States and China, along with more than 30 subsidiaries and representative offices.

The company has more than 2,100 patents worldwide, serves customers across over 120 markets and has approximately 9,846 employees globally.

Blum has also conducted more than 600 kitchen observations across over 30 countries to study how people use kitchens and furniture in everyday life.

As part of its sustainability initiatives, the company has been ISO 14001 certified since 1997.
